At around the same time, virtualization was starting to grow, and the internet began to mature beyond an academic and military tool. Static, informational websites built purely in HTML gave way to database-driven dynamic content that enabled small start-ups to sell on a worldwide platform with minimal infrastructure.
Websites started to become ever more complex, and slowly the developer community began to realize that full-blown applications could be run as web apps within a browser window, rather than having to control and deploy software directly to a user’s PC.
Processing requirements now moved to the backend server—dynamic web pages were generated on the fly by the web server, with the user’s PC only rendering the HTML.
With all this reliance on the backend, those designing applications had to take into account how to react to failures automatically. The virtualization layer, and the software running on top, had to be able to respond to issues in a way that made the user completely unaware of them.
Architects had to design solutions to be able to cope with an unknown number of users that may vary over time, coming from different countries. Web farms helped spread the load across multiple servers, but this in itself meant a new way of maintaining state or remembering what a user was doing from one page request to the next, keeping in mind that they might be running on a different server from one request to the next.
As the mobile world exploded, more and more mobile apps needed a way of using a centralized data store—one that could be accessed over the internet. Thus, a new type of web app, the API app, started serving raw data as RESTful services (where REST stands for REpresentational State Transfer) using formats such as Extensible Markup Language (XML) or JavaScript Object Notation (JSON).
Information
A RESTful service is an architectural pattern that uses web services to expose data that other systems can then consume. REST allows systems to interchange data in a pre-defined way. As opposed to an application that communicates directly with a database using database-specific commands and connection types, RESTful services use HTTP/HTTPS with standard methods (GET, POST, DELETE, and so on). This allows the underlying data source to be independent of the actual implementation—in other words, the consuming application does not need to know what the source database is, and in fact could be changed without the need to update the consumer.
Eventually, hosted web sites also started using these APIs, with JavaScript-based frameworks to provide a more fluid experience to users. Ironically, this moved the compute requirements back to the user’s PC.
Now, architects have to consider both the capabilities of a backend server and the potential power of a user’s device—be it a phone, tablet, laptop, or desktop.
Security now starts to become increasingly problematic for many different reasons.
The first-generation apps mainly used form-based authentication backed by the same database running the app, which worked well for applications such as shopping sites. But as web applications started to serve businesses, users had to remember multiple logins and passwords for all the different systems they use.
As web applications became more popular—being used by corporates, small businesses, and retail customers—ensuring security became equally more difficult. There was no longer a natural internal barrier—systems needed to be accessible from anywhere. As apps themselves needed to be able to communicate to their respective backend APIs, or even APIs from other businesses providing complementary services, it was no longer just users we had to secure, but additional services too.
Having multiple user databases will no longer do the job, and therefore new security mechanisms must be designed and built. OpenID, OAuth2.0, SAML(which stands for Security Assertion Markup Language), and others have been created to address these needs; however, each has its own nuances, and each needs to be considered when architecting solutions. The wrong decision no longer means it won’t work; it could mean a user’s data being exposed, which in turn leads to massive reputational and financial risk.

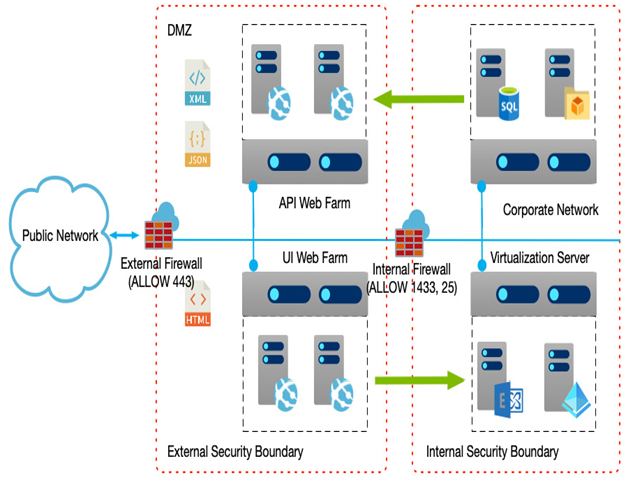

From an architectural point of view, solutions are more complex, and as the following diagram shows, the number of components required also increases to accommodate this:
Figure 1.4 – Web apps and APIs increase complexity
Advancements in hardware to support this new era and provide ever more stable and robust systems meant networking, storage, and compute required roles focused on these niche, but highly complex components.
In many ways, this complexity of the underlying hosting platforms led to businesses struggling to cope with or afford the necessary systems and skills. This, in turn, led to our next and final step—cloud computing.
